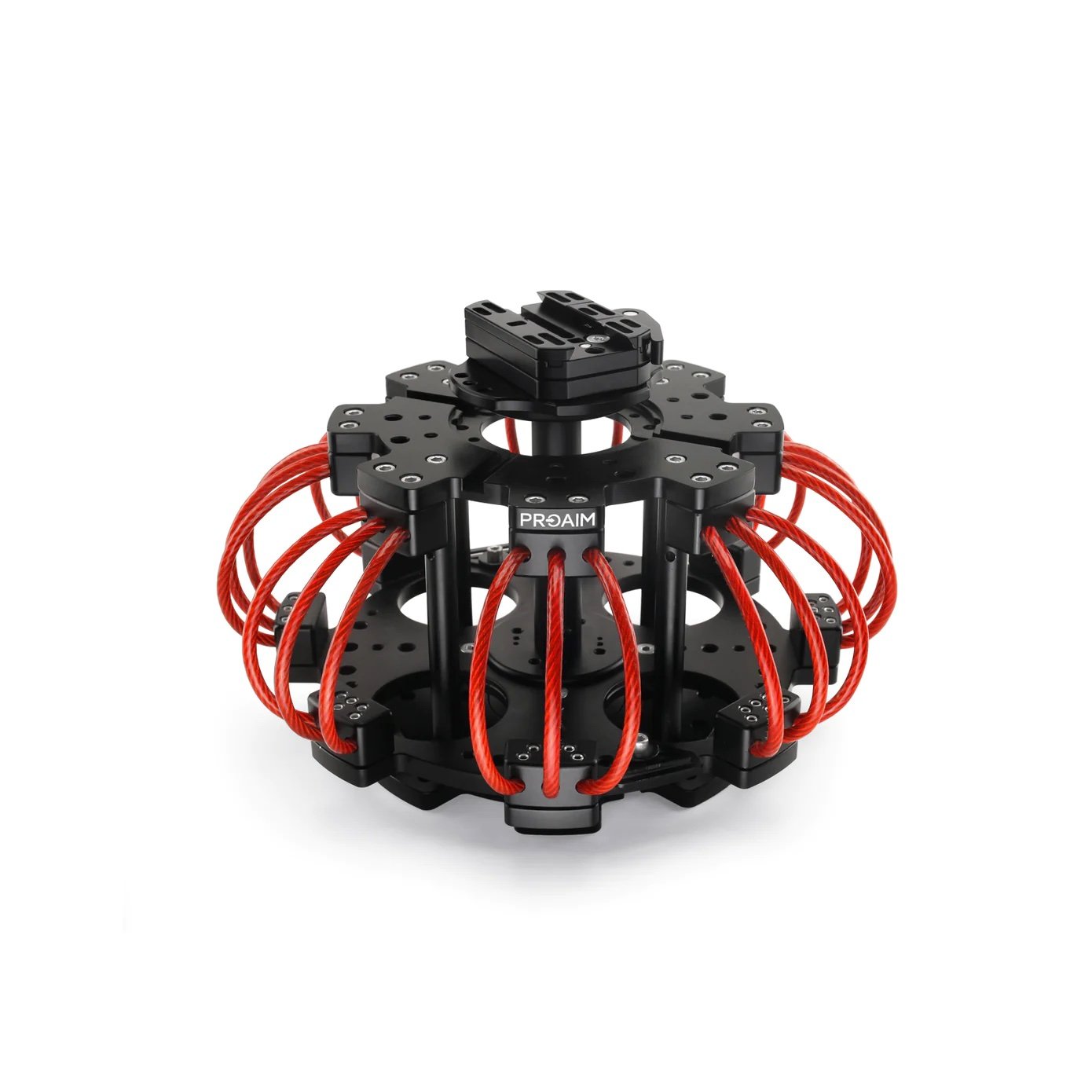

Cyrus Vibration Isolator

Proaim Cyrus Vibration Isolator

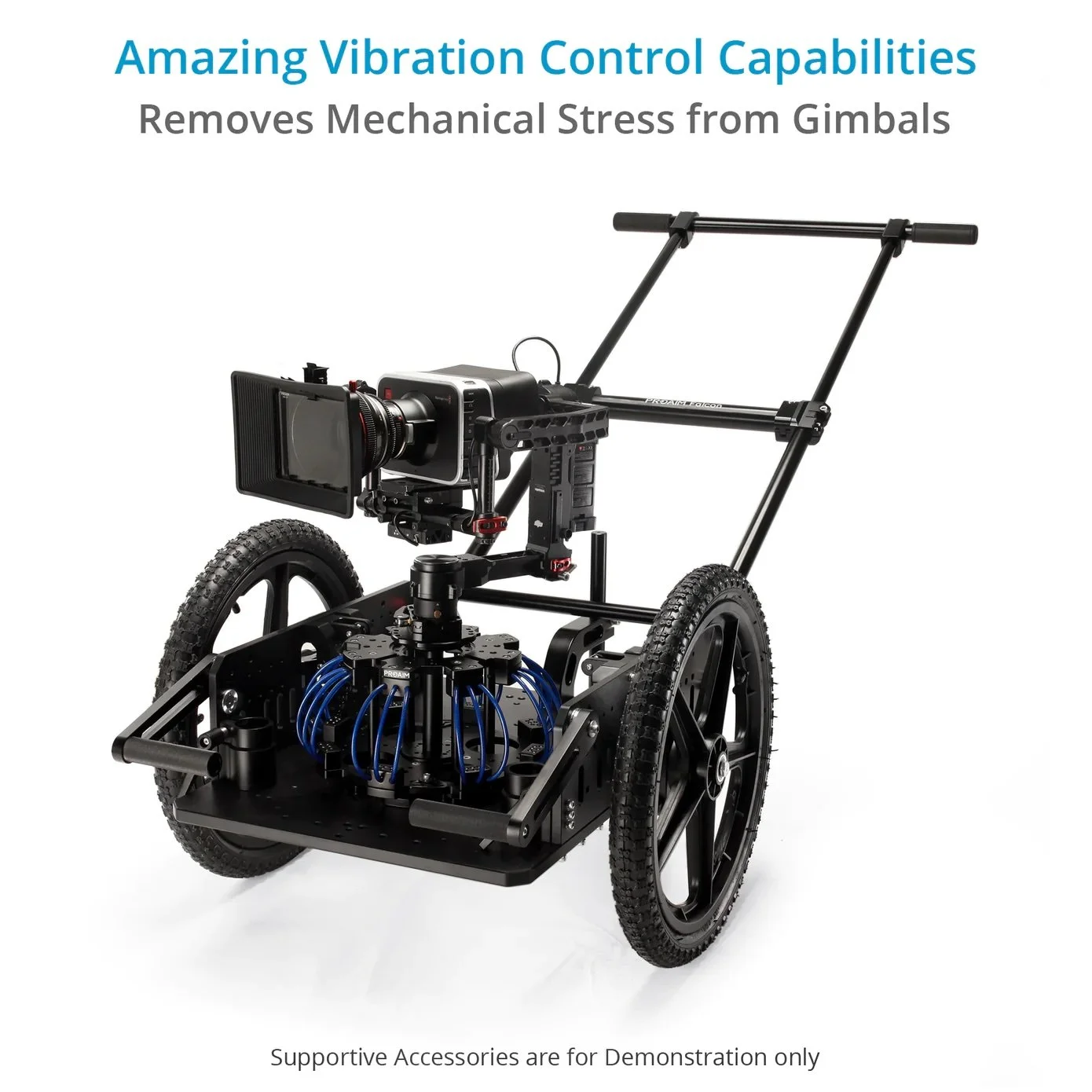

Great addition when using the Falcon Rickshaw

Includes:

  • Cyrus Vibration Isolator

  • 8 x each: Black , Red and Blue Shocks modules

  • Ronin 2 Mount Plate

  • 4 x T Handle Hex Keys

Specs:

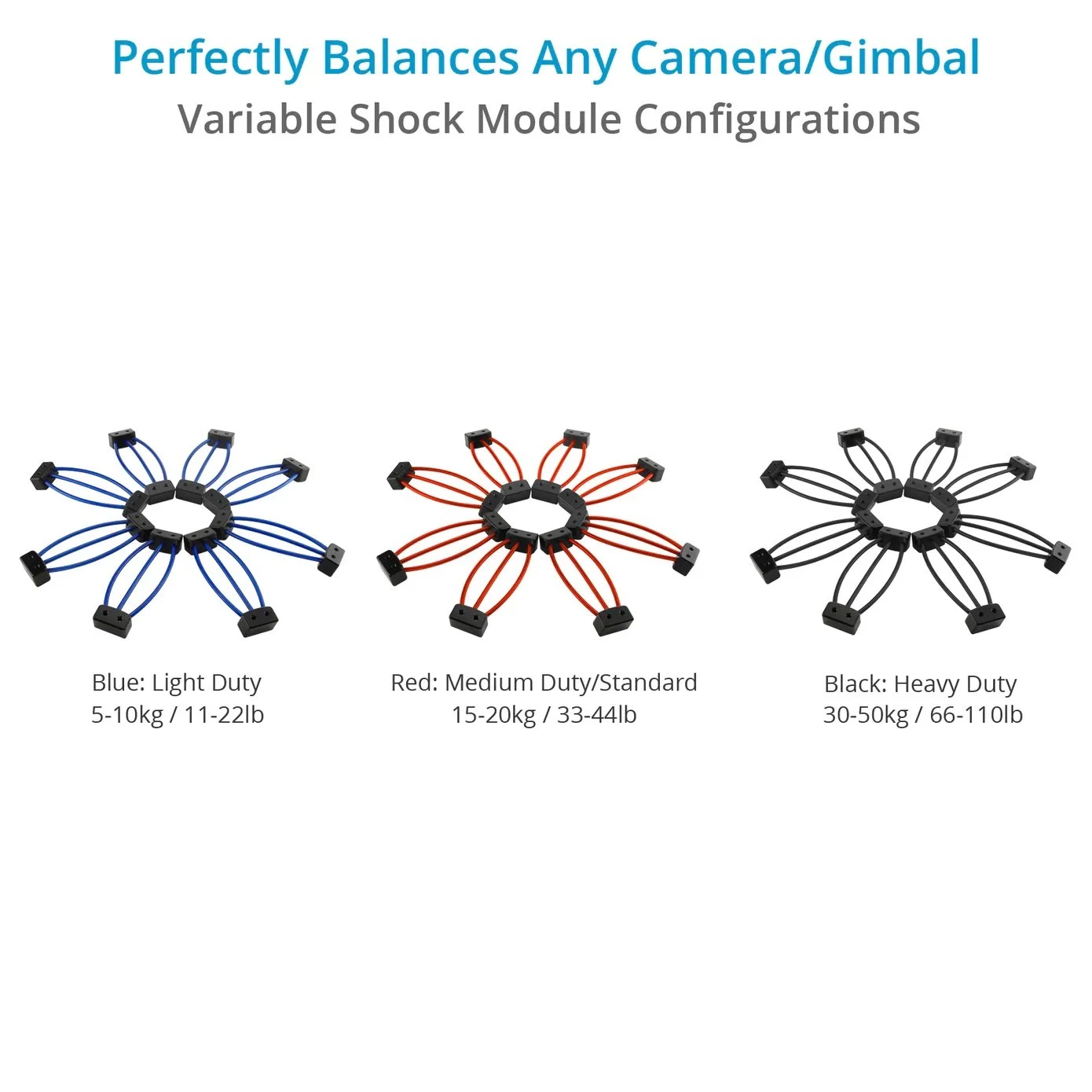

  • Over-slung/Under-slung:  8 Black Shock Modules: 30-50kg / 66-110lb
                                                  8 Red Shock Modules: 15-20kg / 33-44lb
                                                  8 Blue Shock Modules: 5-10kg / 11-22lb

  • Payload of Single Module: Single Black Shock Module: 5 kg / 11lb
                                                  Single Red Shock Module: 2.2 kg / 4.8lb
                                                  Single Blue Shock Module: 0.950 kg / 2.09lb

  • Mounting - Top: Mitchell , Bottom: Mitchell & 3/8”-16

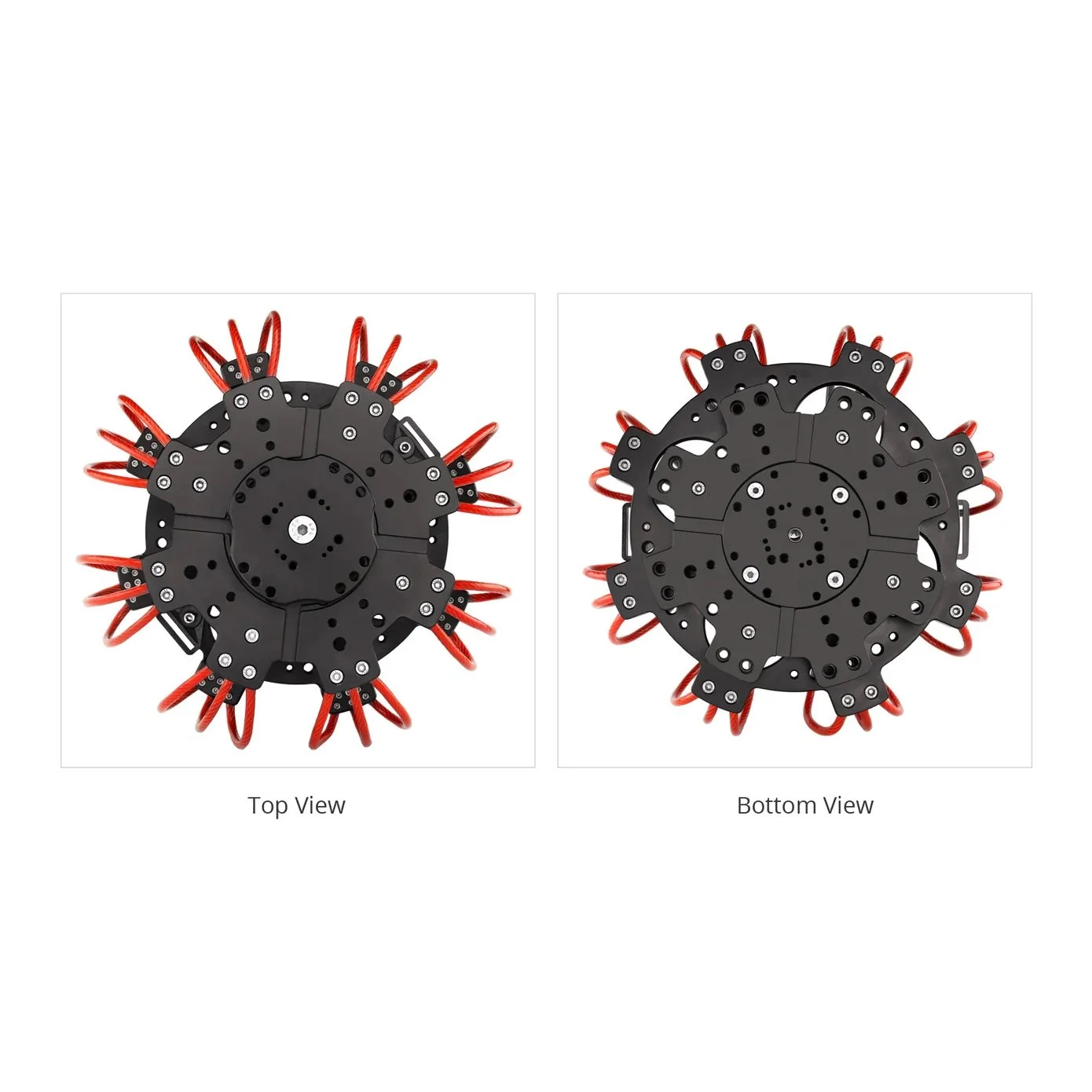

  • Top Plate :   Diameter: 9"

  • Bottom Plate :   Diameter: 13.25" , Diameter w/o tether point: 11.95"

  • Mounting Threads: 1/4”-20 & 3/8”-16

  • Cable Diameters:   No Load 14.25" - Load 14.75"

  • Cyrus Instruction Manual
