Tadpole
3/8" Eye Bolt
Modified 3/8" eye bolt with cut-down thread and threaded washer — ready to use with Easyrig

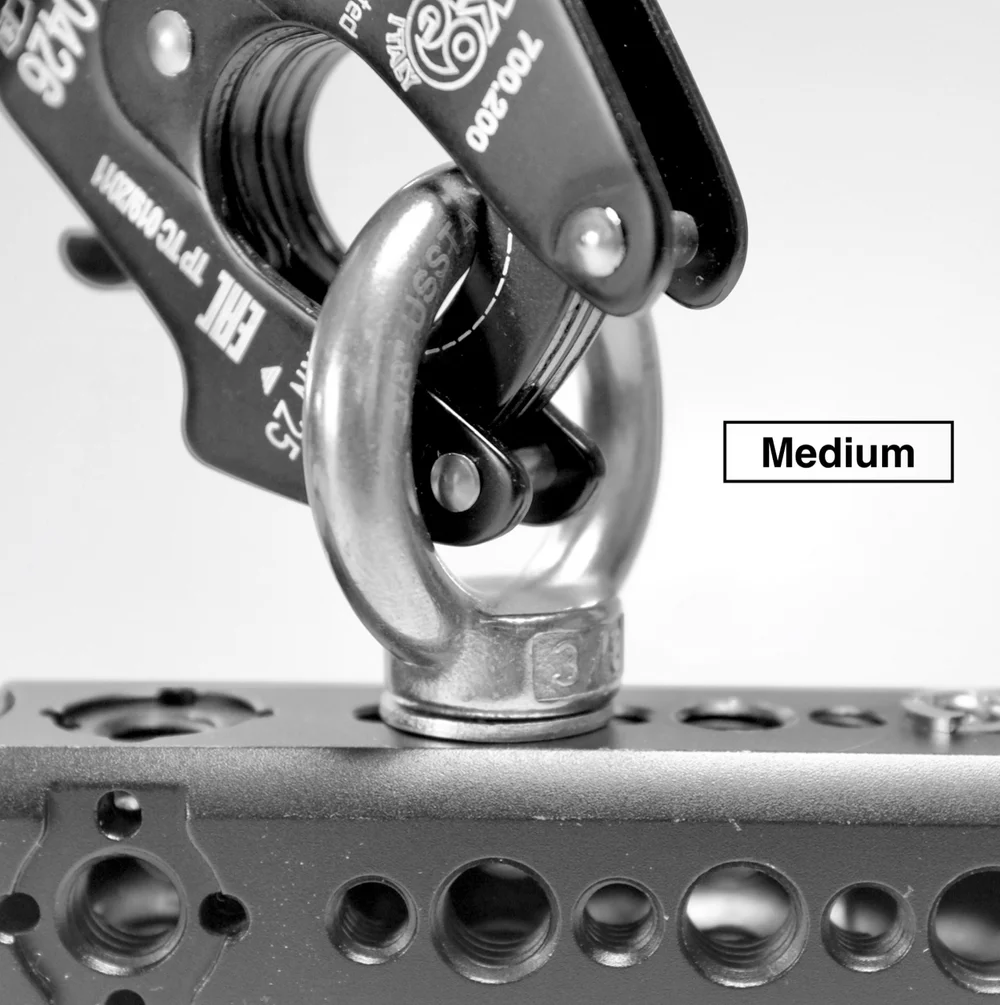

A 3/8" eye bolt modified specifically for Easyrig use. The thread/bolt length is cut down to approximately 13mm — a washer is added to protect camera handles when screwing on, for a low-profile thread to suit camera handles. Often longer threads will not go in fully on camera handles, or go right through the cage and hit into the camera body.
Eye Bolts MUST be threaded in fully and firmly for safety and strength security.
Size: Medium

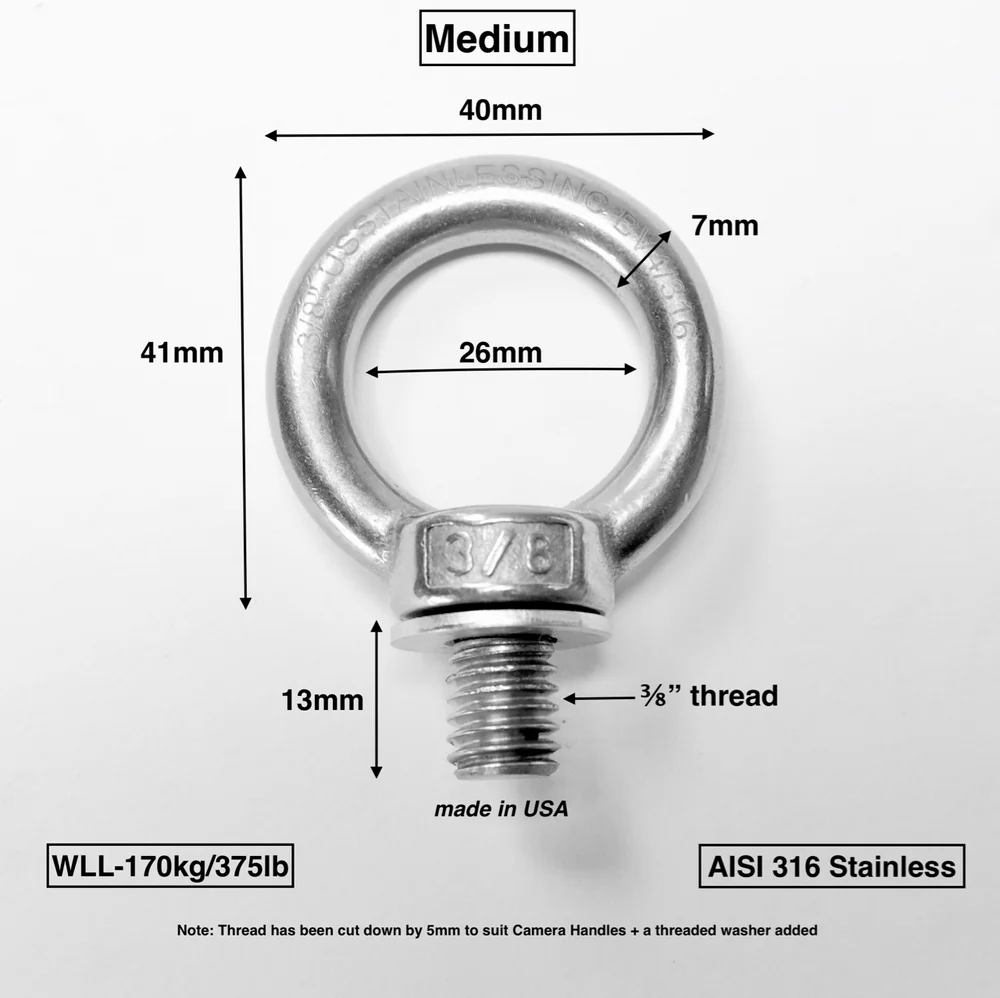

SPECIFICATIONS
- Thread: 3/8"
- Size: Medium
- Thread/bolt length: approx. 13mm (about 11mm with washer)
- Includes threaded washer
- Overall dimensions: 41mm × 40mm
- Eye diameter: 26mm
- Working Load Limit (WLL): 170 kg
- Material: AISI 316 Stainless
GALLERY
Price
$34.00 + GST
($39.10 incl. GST)
