Tranquilizer
Next-generation polymer vibration isolator for the Black Arm
The Flowcine Tranquilizer is the next generation of vibration isolators for the Black Arm — and in Tadpole's view, the only serious choice for professional vehicle-mounted gimbal work.
Unlike wire rope isolators, the Tranquilizer uses custom polymers that minimise vibrations from low frequencies while maximising pan motor torque without causing self-oscillation. The result: dramatically cleaner footage at speed, over rough terrain, and in high-wind conditions.

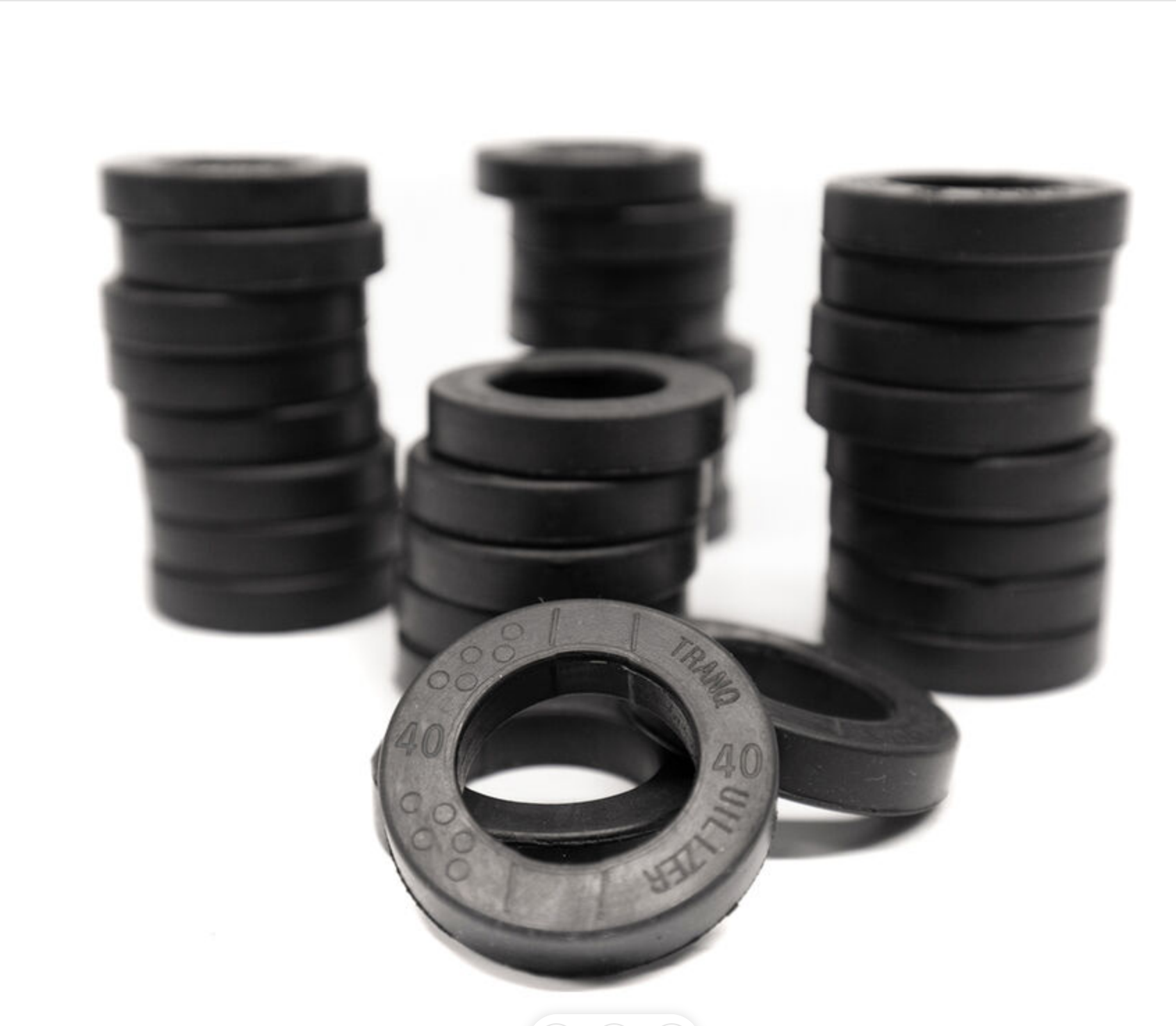

Adjust the resistance and quantity of polymer sets to dial in the exact weight of your rig. Ships with two polymer sets (Shore 30 and Shore 40). Additional sets available separatelyShore 20 — 5.40–10.75 kg
Shore 30 — 6.70–13.25 kg
Shore 40 — 11.25–22.50 kg
Shore 50 — 13.75–27.50 kg
Shore 60 — 19.00–34.50 kg
The Tranquilizer also includes Flowcine Passive Plates — eight plates that add over 5 kg / 11 lbs to the system for fine-tuning weight distribution and improving shock compensation. Easy to attach and remove even with the gimbal mounted.
Designed for underslung operation. Weight: 8 kg. Case dimensions: 45 × 32 × 25 cm.
SPECIFICATIONS
- Polymer-based isolation — no wire rope
- Eliminates self-oscillation on pan axis
- Includes Shore 30 & 40 polymer sets
- Additional Shore 20 / 50 / 60 sold separately
- 8 × Passive Plates included (adds 5+ kg)
- Payload: 5.40–34.50 kg across all shores
- Designed for underslung operation
- Weight: 8 kg | 45 × 32 × 25 cm
